Activation: LIGHT button / + - + -
Maximum speed: unlimited
Speed limit setting: yes
Display shows: actual values
Compatible with motors :
Bafang Max Drive M300
Bafang Max Drive M400
Bafang Max Drive M420
Not compatible with:
Bafang Max Drive M500
Displays with UART connectors
Product code: SB31_BAF_10+1pcs_BAGShipping and Payment
A smart product of the third generation with an option to set a speed limit of an e-bike.
SpeedBox 3.1 enables to select speed limit of your own choice. After the tuning is installed, your e-bike’s display will show real data, such as maximum and average speeds, daily mileage and cruising range.
How does SpeedBox 3.1 work?
The tuning kit can be activated directly on your bike’s display. After pressing the LIGHT button or ↑↓↑↓, a value of 99 km/h (62 mph) is displayed and from now on you will be able to ride at an unlimited speed.
To deactivate the tuning kit, press the LIGHT button or ↑↓↑↓ again. The value of 25 km/h (16 mph) will appear on your display and the speed limit will reset to 25 km/h. Your e-bike will then work the same as before installation of the chip.
You can set the maximum speed of an electric assistance by changing modes by switching modes three levels down and then three levels up. An actual speed limit will be displayed after that. The maximum speed of an electric assistance can be switched by pressing LIGHT button shortly or by turning the rear wheel 360°. The last displayed limit will be saved after 5 seconds of inactivity.

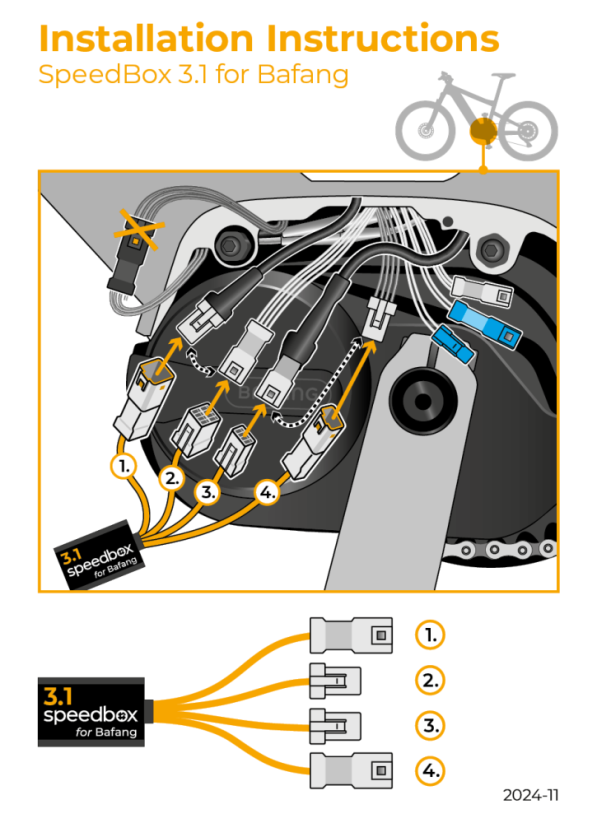

When connecting the SpeedBox to an e-bike you will find connectors colored to make installation very simple. We have prepared detailed instructions and videos to make installation easy for you. Disassembly of the SpeedBox is just as easy. If you have any troubles with installation or disassembly, do not hesitate to contact us.
If you are planning to install SpeedBox on a brand-new bike, make sure you ride it for at least 1 km before the tuning is activated.
Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use SpeedBox products. Electric bikes equipped with SpeedBox products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with SpeedBox products can be used exclusively on private property and entirely at one’s own risk. The use of SpeedBox may void the warranty of your ebike.
We strongly recommend using other safety features and protective gear to prevent injuries.
|Number of Speed Sensor pins|
|Bluetooth/ SpeedBox App||NO|
